Horizontal Coordinate Measuring Machines
When sheet-metal panels, large castings, or complex sub-assemblies need to be inspected, does your current bridge Coordinate Measuring Machine (CMM) create more obstacles than answers?
B&R 3D Solutions’ horizontal-arm CMM range delivers open-access, high-volume dimensional inspection – engineered for the production floor, not the metrology lab.
- Measurement volumes up to 8 metres along the X-axis with single- or dual-arm configurations.
- Multi-sensor capability – tactile probing and laser scanning in a single measurement routine.
- On-site installation, calibration, and ongoing technical support across sub-Saharan Africa.
Explore our World-Class Horizontal CMM Range
LK Metrology Horizontal Coordinate Measuring Machines
Ceramic-guided precision with air-bearing axes, backed by a 10-year accuracy guarantee.

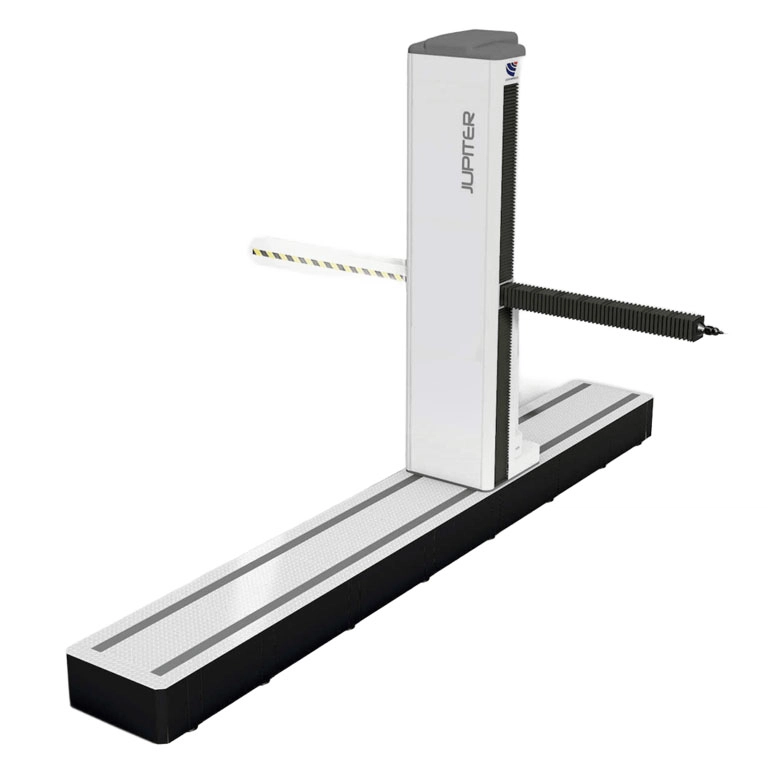

Coord3 Horizontal Coordinate Measuring Machines
Single- or dual-arm configurations with full thermal encapsulation for uninterrupted production-line inspection.
When the part is too large, too complex, or too awkward for a bridge – the horizontal arm delivers. Contact our specialists for guidance on +27 11 663 2600 or fill out the form.
Horizontal CMM Applications
Horizontal CMM architecture is engineered for open-access dimensional inspection – delivering reliable accuracy on parts that are too large, too thin-walled, or too awkwardly shaped to fixture inside a bridge or gantry enclosure.
Our Horizontal CMM Brands
No enclosure. No repositioning. No compromise on coverage. Measure a complete car body without lifting it off the line.
Not sure whether a single-arm, dual-arm, or runway configuration suits your workflow?
Contact our specialists to find out.
